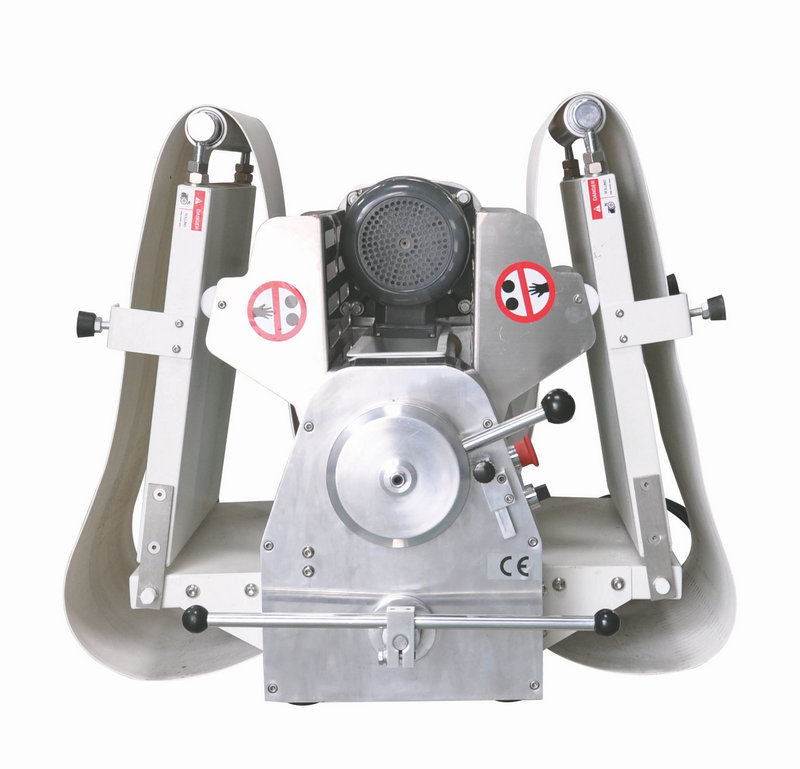

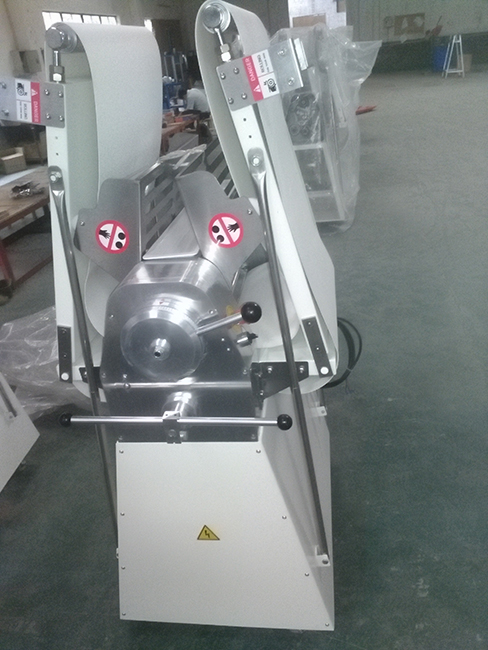

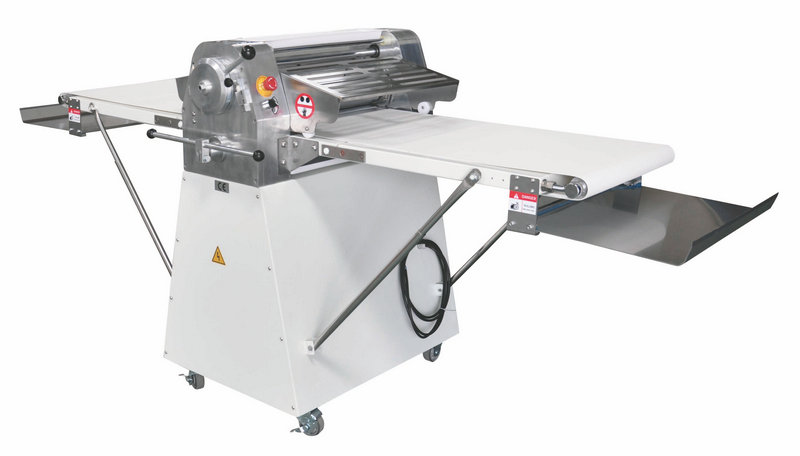

MT-520A Table-Reversible Sheeter

MT-520A Table-Reversible Sheeter

* Oil immersion design, made low noise, good characteristics for wear resistance.
* Quality component and stainless steel structure, Stable and durable.
* The stainless steel roller is polished instead of chromed, that is more durable
  and made the dough thinner, non-stick.
* The thickness is up to 1mm.
* Space saving and easily to move for its folded structure.

BACK
Product Details

Type

Model

DimensionL*W*H

Power

Voltage

Unfold/fold Size(W*H)

Conveyor belt size

Rolling range

Max dough

N/W

Reversible Sheeter

MT-450A

820*1770*620mm

0.56KW

220V-380V-50/60HZ-1/3PH

1770*620mm/

750*710mm

430*1700mm

1-35mm

4KG

117KG

MT-520A

820*2080*620mm

0.56KW

220V-380V-50/60HZ-1/3PH

2080*620mm/

750*840mm

500*2000mm

1-35mm

5KG

125KG

MT-520

880*2550*1180mm

0.56KW

220V-380V-50/60HZ-1/3PH

2550*1180mm/

660*1600mm

500*2000mm

1-35mm

5KG

190KG

MT-650

1100*2950*1180mm

0.75KW

220V-380V-50/60HZ-1/3PH

2950*1180mm/

780*2550mm

630*2400mm

1-35mm

6.5KG

225KG


FEATURES:

1.  Oil immersion design, made low noise, good characteristics for wear resistance.

2.  Quality component and stainless steel structure, Stable and durable. The stainless steel roller is polished instead of chromed, that is more durable and made the dough thinner, non-stick.

3.  The thickness is up to 1mm.

4. Space saving and easily to move for its folded structure.



NOTICE:

1.      Empty texting before working to make sure the machine has no abnormal condition.

2.      Hard dough is not allowed, such as frozen dough, and thickness adjustment do not too much for once, otherwise the stability and the working life will be cutted down. When the thickness of the dough is more than 10mm, reduce about 5mm each time; when the dough 5 ~ 10mm, decrease 2mm each time; when the dough 5mm or less, decrease 1mm each time.

3.      Heavy goods are not allowed on the transmission platform.

4.      Avoiding the transmission slip off the chain, please readjust the belt and the chain to the appropriate position after the machine running 40 hours.

5.      Avoiding damaging the machine parts, please add lubricant to the transmission parts, retightened the fasten parts after the machine running 80 hours.

6.      Keep the machine clean, flour or dirt or other items can not attached on chains and other transmission components, in case the axle burn out or damage.

7.      Wipe the machine with rag, strictly forbid to clean with running water.

8.      Any abnormal sound or other unusual conditions occur, please turn off the machine immediately and inform the professional maintenance staff.
